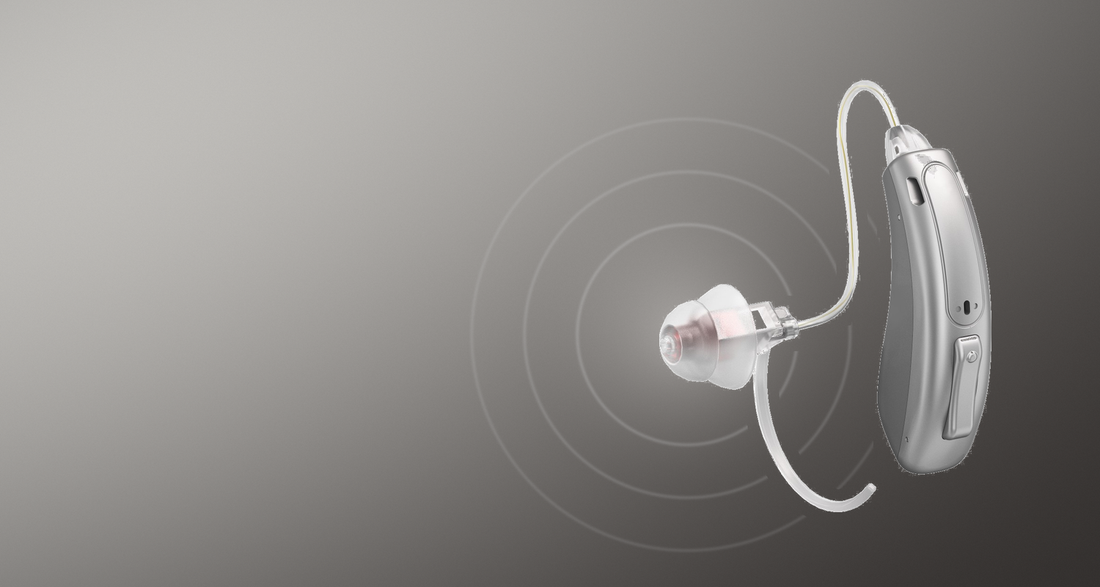

Receiver miniaturization is an active direction in hearing-device development. A smaller receiver may support more ear anatomies, a more discreet fitting or greater packaging freedom. But an OEM buyer should not approve a receiver-in-canal platform because one component is smaller on paper.

The receiver sits inside a complete acoustic and mechanical system. Its size, output, nozzle, cable route, housing, ear tip, venting, firmware and fitting range all interact. Change one element and the finished product may behave differently in the ear, during handling and across production lots.

Why receiver size is a system decision

Knowles’ EUHA 2026 announcement highlights an industry effort to combine smaller RIC receiver packaging with output, fitting and durability goals. Because this is a supplier announcement, its product-specific performance figures should be treated as commercial claims until verified for the buyer’s exact design.

The broader engineering question is still useful: what does a smaller receiver enable, and what new evidence is required before it becomes part of an approved hearing-aid platform?

Start with the intended fitting range

Component selection should begin with the intended user and acoustic fitting range—not with enclosure size alone. Define the target gain, maximum output, frequency response, ear-tip options and programs for the finished model. Then test whether the selected receiver supports those requirements with appropriate margin.

A component that performs well at one nominal setting may behave differently at maximum intended gain or with another acoustic coupling. Buyers should request results for the configurations customers will actually receive, including user-accessible adjustments and app settings where applicable.

Validate the complete acoustic path

Output and frequency response

Measure the finished device rather than relying only on a receiver datasheet. The nozzle, tubing or receiver housing, wax protection, ear tip and vent can all affect the response reaching the ear. Acceptance limits should be tied to the approved device configuration and relevant regulatory requirements.

Gain before feedback

A smaller package may change receiver placement and the relationship between the receiver and microphones. Evaluate acoustic stability across the fitting range, supplied ear tips and common near-object conditions. Feedback suppression should preserve useful response rather than simply reducing gain whenever the system becomes unstable.

Distortion, noise and listening quality

Bench measurements and listening evaluation answer different questions. Measure distortion and self-generated noise under defined conditions, then use structured listening checks for speech, music, handling sounds and program transitions. A compact receiver is not an advantage if the complete product sounds inconsistent or produces objectionable artifacts.

Mechanical integration is part of acoustic performance

The receiver cable exit, bend radius, strain relief, housing geometry and nozzle alignment influence both fit and reliability. Review the complete assembly in representative ears and fixtures. Confirm that the wire rests naturally, the receiver remains seated during jaw and head movement, and the product can be inserted and removed without loading vulnerable joints.

Also check compatibility among receiver lengths, left and right assemblies, approved domes or tips, retention parts and replacement procedures. Service parts that look similar but are not interchangeable can create avoidable field errors.

Durability must match real handling

Users do not handle a receiver as an isolated laboratory component. They pull the device from a case, place it in the ear, remove it, clean it, travel with it and may occasionally drop it. The validation plan should therefore cover the finished assembly and its highest-risk interfaces.

• Repeated insertion and removal using the approved method.
• Cable flexing and strain at both connection points.
• Drop and impact conditions relevant to the finished product.
• Moisture, sweat and contamination exposure defined by the product risk assessment.
• Wax-guard and ear-tip replacement using approved service parts.
• Post-stress acoustic checks, not only visual inspection.

If a charging or drying case is part of the platform, confirm that repeated storage does not bend the receiver wire or place pressure on the earpiece.

Control component and assembly variation

Prototype performance does not establish production consistency. Define incoming inspection, traceability and acoustic acceptance criteria for the receiver and assembled device. Pilot builds should include enough units to reveal variation in receiver output, microphone sensitivity, sealing, cable routing and assembly tolerances.

Component substitutions, nozzle revisions, cable changes and firmware updates should enter formal change control. The buyer and OEM should agree in advance which changes require notification, sample approval and partial or full revalidation.

Require evidence before platform approval

• The exact receiver part number and approved alternates.
• Finished-device electroacoustic results across intended configurations.
• Feedback-stability results with every supplied ear-tip option.
• Mechanical drawings and cable-routing tolerances.
• Durability protocols, sample counts, failures and corrective actions.
• Pilot-lot distribution data rather than one best sample.
• Service-part, replacement and traceability plans.
• A signed change-notification process covering hardware and firmware.

A practical OEM decision framework

A smaller receiver can create real product opportunities, but miniaturization should be evaluated as a platform change. Connect receiver qualification to the broader feedback-control validation plan, sound-quality testing and the buyer’s component change-notification agreement.

The right question is not “How small is the receiver?” It is “Can the complete product meet its fitting, acoustic, durability and production requirements with repeatable evidence?”
